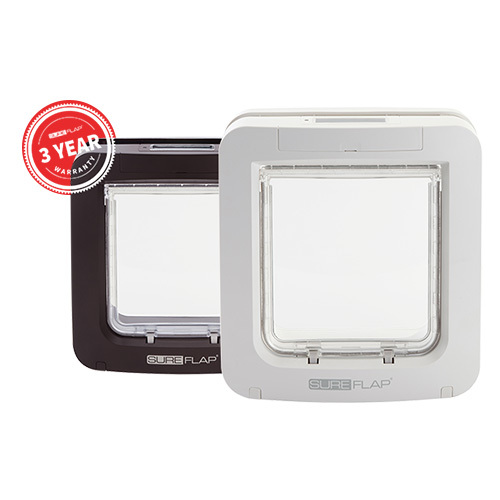

The new SureFlap Microchip Pet Door is the first to be designed to meet the needs of large cats and small dogs.

• Works with a pet's existing identification microchip or RFID collar tag (one tag

supplied)

• Compatible with all microchip formats worldwide (except those strating with 000...;010... and 020...)

• Suitable for multi-pet households (up to 32 pet identities)

• NEW Curfew Mode: program the door to lock and unlock at specified times

• NEW Double Lock Mechanism for increased security against intruder animals

• Fits into doors, windows and walls

• Battery powered: 6 months typical battery life

Flap Dimensions

178mm (W) x 170mm (H)

This dimension is the smallest area of the pet door that your pet will have to enter.

Hole Dimensions

207mm (W) x 234mm (H)

The exterior frame can be used as a template to cut the hole required to fit your pet door.

Tunnel's Interior Dimensions

188mm (W) x 212mm (H)

Tunnel's Exterior Dimensions

199mm (W) x 224mm (H)

For normal wooden door installations, with no metal in the wooden door.
